Dometic DC Kit DSP-T12 For Dometic Air Conditioners

Overview

The Dometic DSP-T12 DC Kit is a kit to allow your Dometic Air Conditioning to operate on 12v via an inverter, even whilst your campervan or motorhome is in motion.

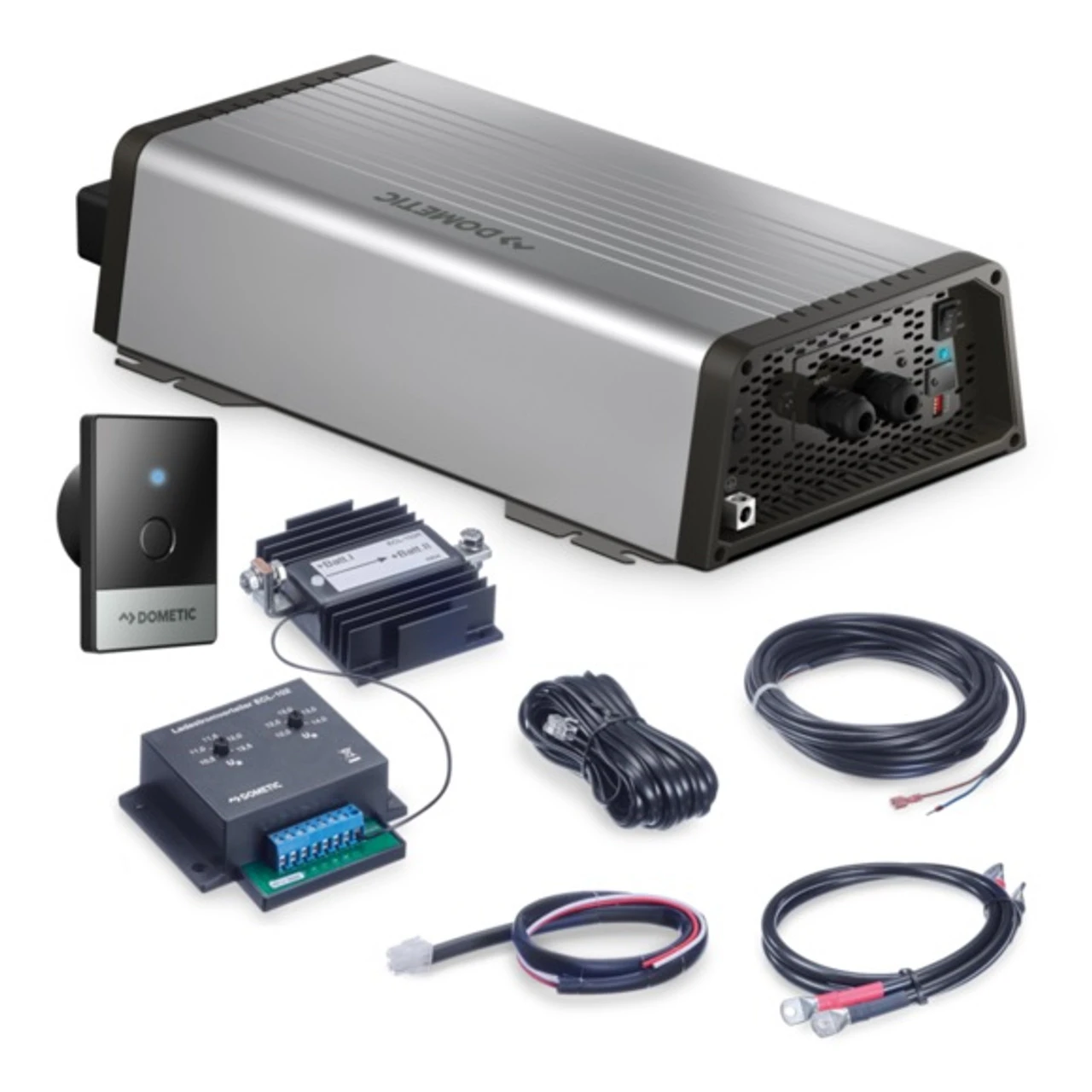

Scope of delivery

The Dometic DSP-T12 consists of:

• 1 x Charging Current Distributor ECL-76 9600000483
• 1 x Inverter with priority circuit PP1002  9600000022
• 1 x Connection Cable                            9600000270
• 1 x Red Power Supply Line (35mm sq, 1.5m Length)
• 1 x Black power supply line (35mm sq, 1.5 Meter Length)
• 1 x Sensing Cable For Freshjet/Freshlight Aircons  4441300221
• 1 x Inverter Adapter                             9103530084
• 1 x MC9 Remote Control For PP1002 Inverter 9600000091
• 1 x Installation & Operation Manual

Scope of Usage

• The Dometic DSP-T12 is to be used for the mobile or static operation of the listed Dometic Air Conditioners Listed below.
• High energy efficiency prevents the overloading of the vehicle battery.
• Pure sine wave output voltage – suitable for supplying sensitive electric devices.

Supported Models

• Freshjet 1100
• Freshjet 1700
• Freshjet 2200
• Freshjet 3200
• Freshlight 1600
• Freshlight 2200
• Freshwell 3000
