Dometic Refrigerator DUS Version Main PCB Board

Original price was: $114.98.Current price is: $80.49.

SKU: ZHLLC 98717 Categories: Refrigeration, RV Appliances

Free Shipping Worldwide
Sustainable materials, for a better tomorrow.
Fast, friendly, always here to help.
Quality You Can Trust

/

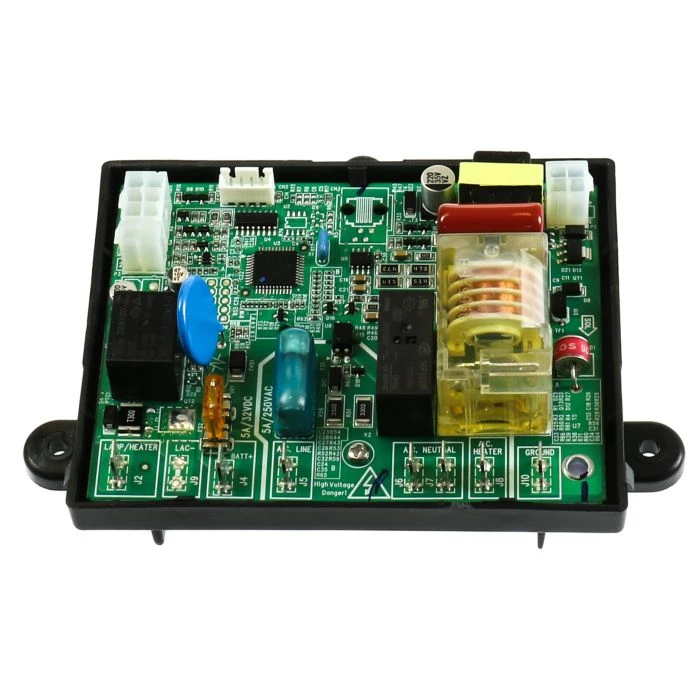

Dometic Refrigerator DUS Version Main PCB Board

Dometic Refrigerator D-US Version Lower Control Board. It comes with an integrated igniter for the propane functions. The lower control board is the main circuit board on the refrigerator and controls the ignition and operation of the propane and the power to the AC element.

J2: To interior light / climate control, J4: Positive 12V DC from terminal block, J5: AC line voltage (black), J6: AC neutral line (white), J7: AC neutral out to AC heater, J8: AC line out to AC heater Switched side, J10: Negative to Chassis ground

Not compatible with all refrigerators. Review the model number on your control board to verify if it is compatible.

**Only works with current 2 way eyebrow board 4450007133 & current 3 way eyebrow board 4450007134**

Item #	98717
Brand	Dometic
Model	4450020229
Replaces	4450007138 4450018066 4450020612
Fits	Dometic Refrigerators Including Models: RM2351 / RM2451 / RM2354 / RM2451 / RM2454 / RM2551 / RM2554
Features	Replacement Dometic PCB Board Model: SP-613A
Included	(1) PCB Board
Dimensions	Box-(not including mount flanges) 5-1/2" x 4-3/4" x 1-7/8" Approx. Mount Holes To Ctrs : 5-1/4" W x 3-1/4" H
Net Weight	.65
Special Order Item	No
LTL Freight	No
